JZON FABRICATIONS · ASSEMBLY GUIDE

Portable Vertical PC Workstation

A clear, visual guide for assembling the frame and installing the primary PC components of the Portable Vertical PC Workstation.

INCLUDED HARDWARE

28x M3 Screws
4x 6-32 PSU screws
1x power buttons

REQUIRED TOOL

PH1 screwdriver

Use a clean, flat work surface.

TIME & DIFFICULTY

10–20 minutes

Easy

PARTS OVERVIEW

Identify the main components

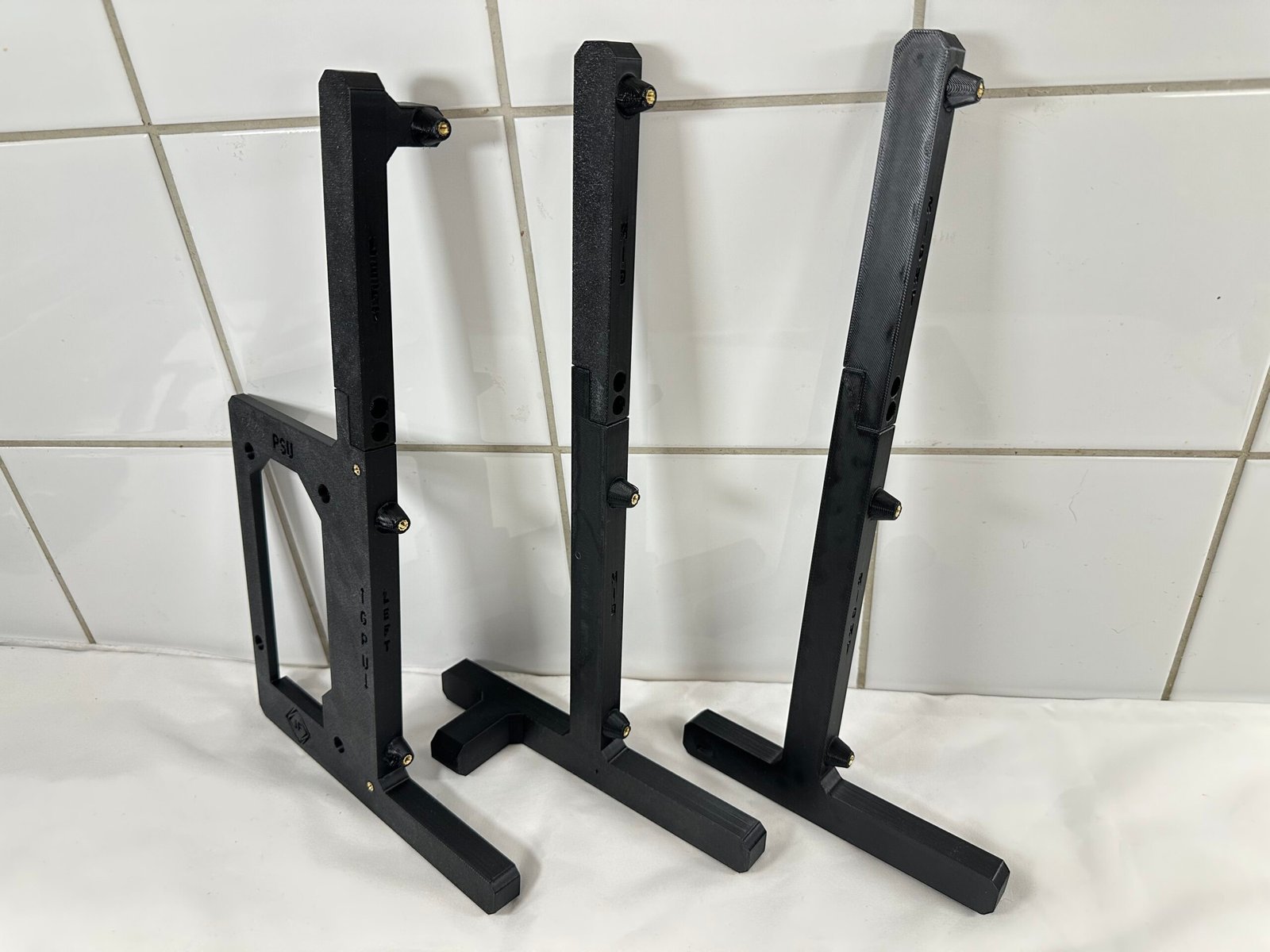

Lay out the frame sections, motherboard tray, support arms and brackets before starting.

This product is comprised of 9x main components:

  • 4x Motherboard mount legs
  • 1x SSD bracket
  • 2x Cable management brackets
  • 1x GPU bracket
  • 1x GPU arc

1

STEP 1

Install the PSU

Instructions

Hardware used

Tip

2

STEP 2

Install the motherboard

Instructions

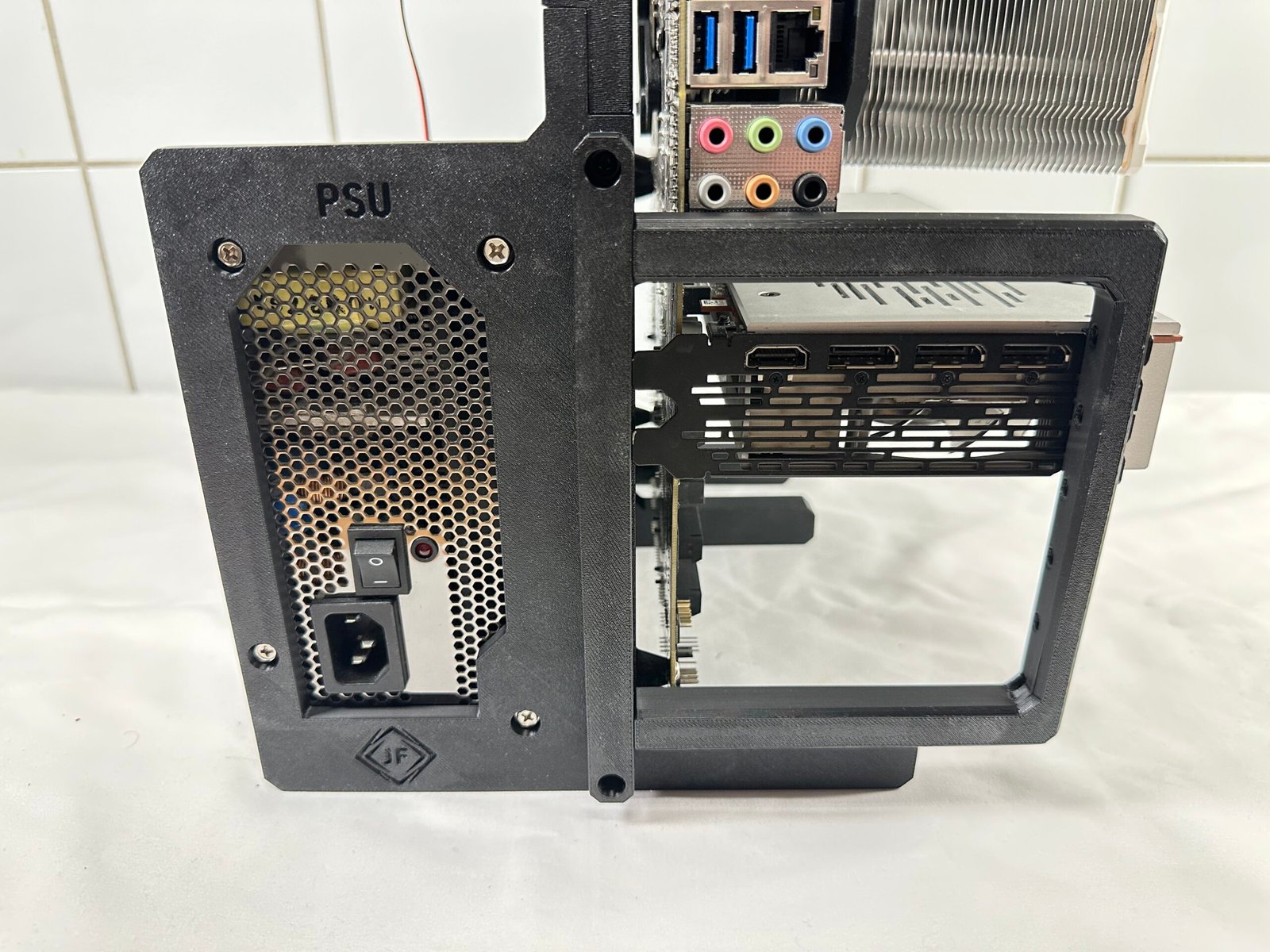

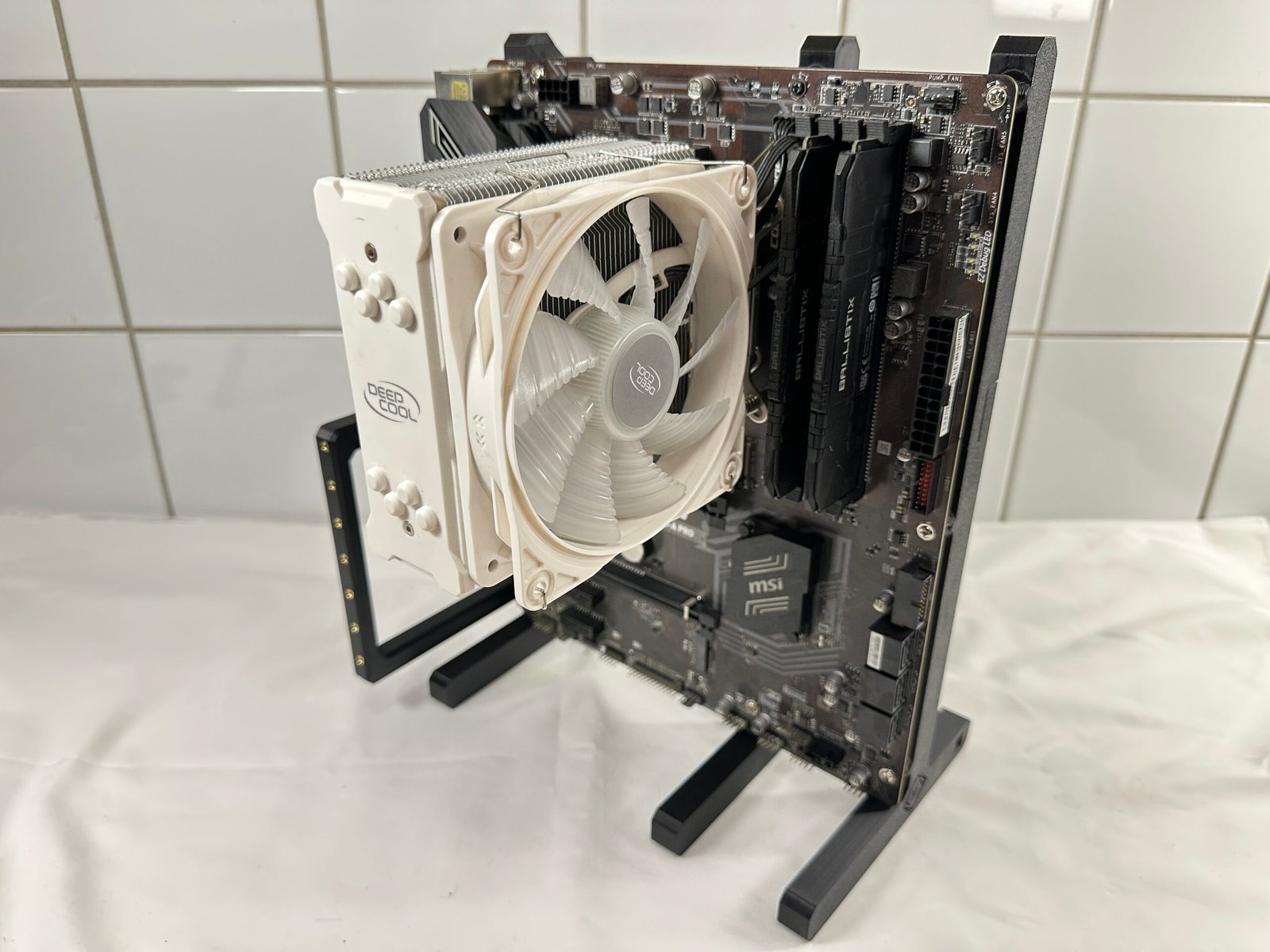

  1. Turn & align the I/O & PCI-e ports of the motherboard to the bottom left.
  2. Align the mounting holes on your motherboard to the PSU leg.
  3. Secure that leg to the motherboard with M3 screws.
  4. Repeat steps 2 & 3 for the remaining motherboard legs.

Important!

It’s crucial that you cover any of the stand-offs that won’t be used with insulating material before you install the motherboard to the motherboard shelf.

Any stand-offs that isn’t used and not covered properly will most likely cause your motherboard to short out, causing critical damage to it!

Hardware used

9-11× M3 screws

Tip

3

STEP 3

Install GPU bracket & arc

Instructions

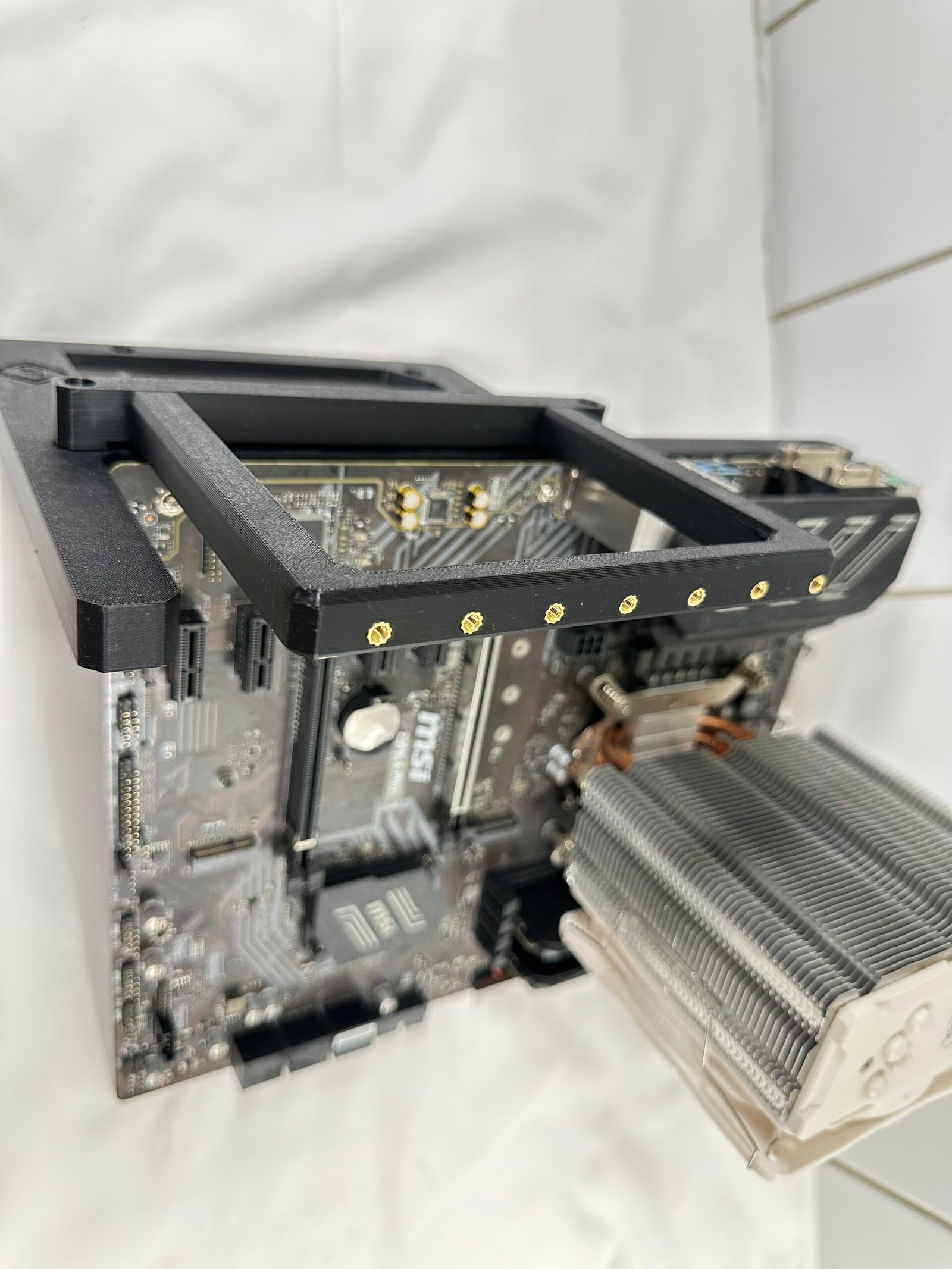

  1. Place the GPU bracket with the assembled  arc against the 2x mounting points on the right leg marked with: “GPU”.
  2. Secure the bracket to the right leg with 2x M3 screws

Hardware used

4x M3 screws

Tip

Use a flashlight or another bright light for this step, because it can be a bit tricky to find the mounting points if it’s dark.

4

STEP 4

Install SSD & brackets

Instructions

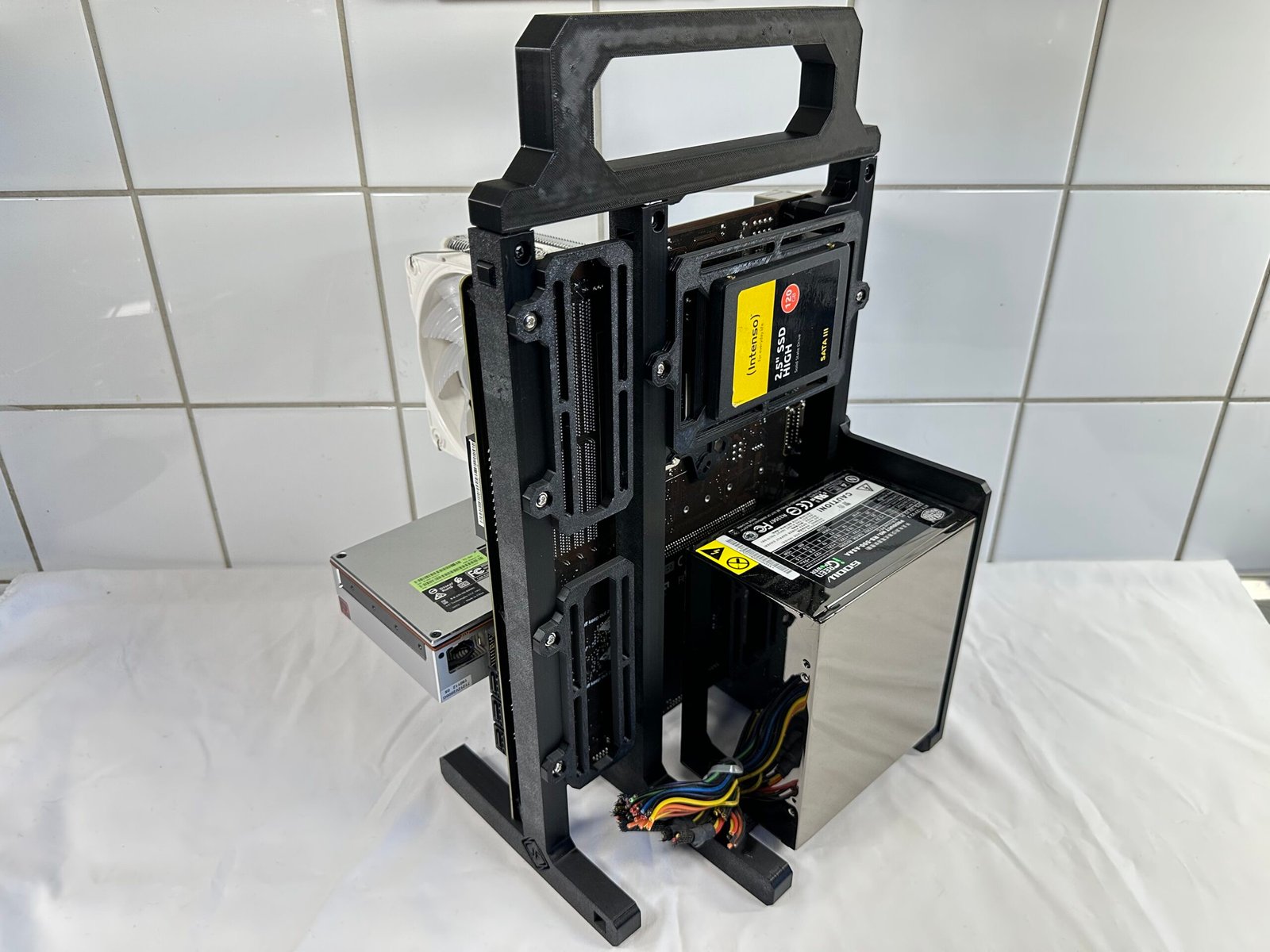

  1. Align and secure the assembled SSD bracket to the mounting points above the PSU with 2x M3 screws.

Hardware used

2x M3 screws

Tip

5

STEP 5

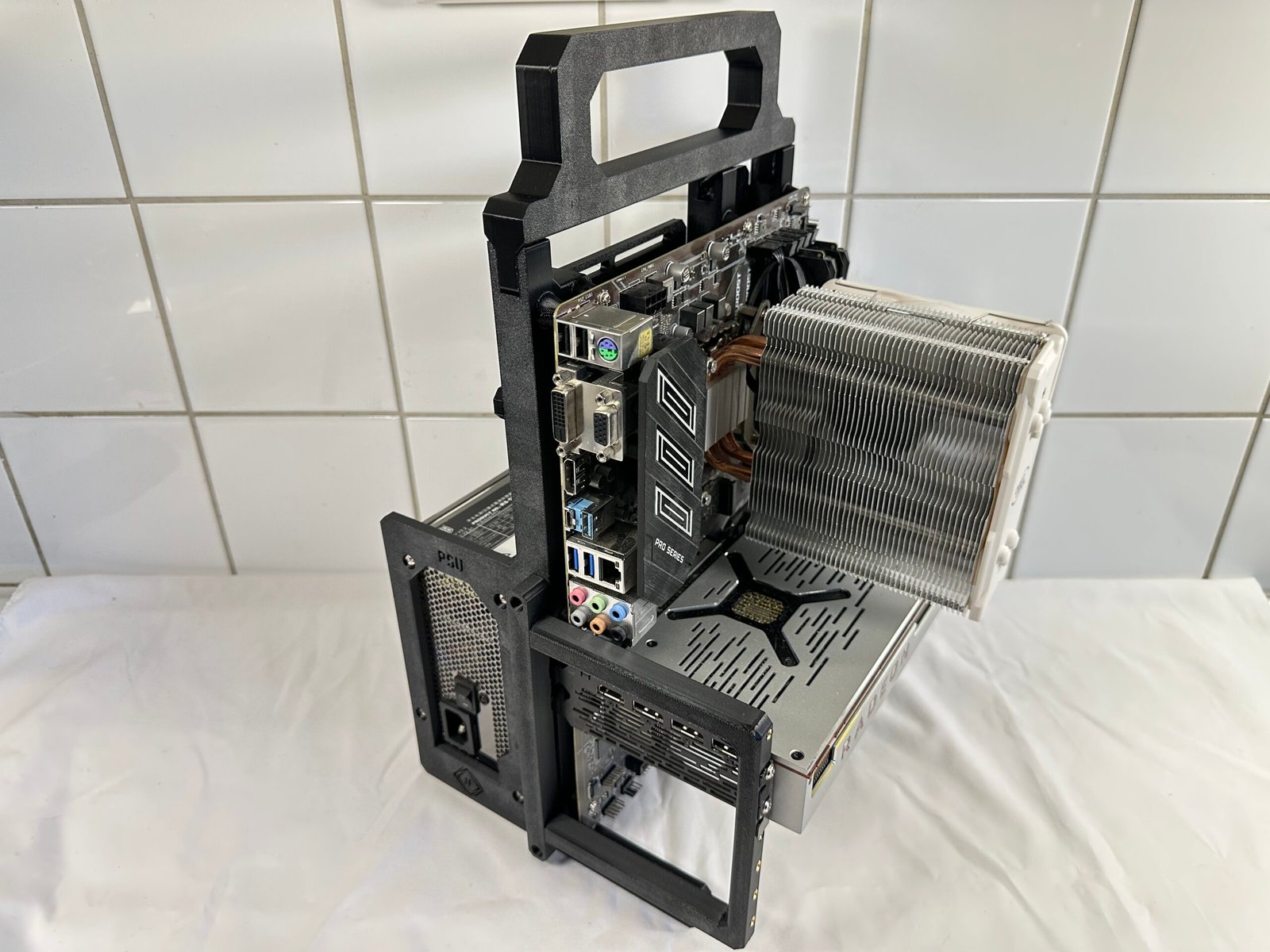

Install the GPU, Handle & Power switch

Instructions

  1. Insert the included Power switch into the hole on the bottom right of the right leg.
  2. Slide the handle into the slots on top of each leg  from the left and secure it into place with 3x M3 screws.
  3. Connect, route and manage all the vital cables.

Hardware used

1× Power button
11-21x M3 screws

Tip

  • Cable management and hardware configuration may vary depending on components used.
FINAL CHECKPOINT

Inspect the complete assembly

  • All frame screws are evenly tightened.
  • PSU & SSD are securely mounted and ventilated.
  • The motherboard and GPU are fully supported.
  • The power button is connected correctly.
  • No cables are touching fans or sharp edges.
SUPPORT

Need help with your assembly?

Is the instruction wrong or misleading? Perhaps you have a suggestion? We’d be delighted to hear from you regardless!

SUPPORT URL

Contact us using the form at our Contact page.

SUPPORT MAIL

Reach out to us by sending us an email.

Designed to Perform. Built to Impress.
